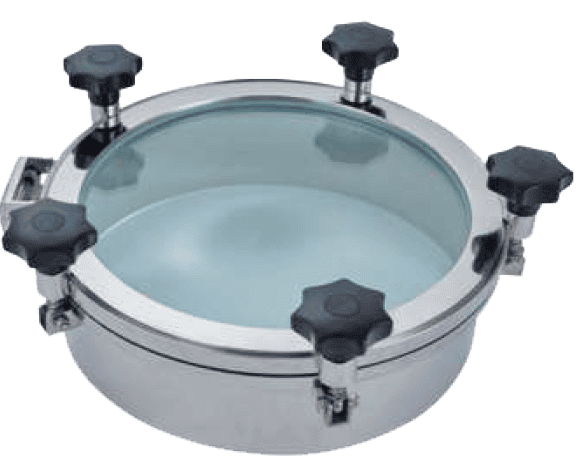

The Full View Glass Manhole is designed for tanks and vessels where direct visual inspection of the internal contents is required. The transparent viewing area allows operators to observe the inside of the tank without opening the manhole, making it useful for monitoring processes and carrying out routine visual checks.
The manhole features a handwheel-operated clamping arrangement for secure closure and convenient opening when access to the tank is required. It is available in multiple sizes and configurations to accommodate different tank and vessel requirements.
Key Features
- Full-view glass design for visual inspection
- Allows observation of tank interiors without opening the manhole
- Handwheel-operated closing mechanism
- Secure multi-point clamping arrangement
- Available in multiple standard sizes
- Suitable for tank and process vessel applications
- Available with different glass thickness configurations
Available Sizes

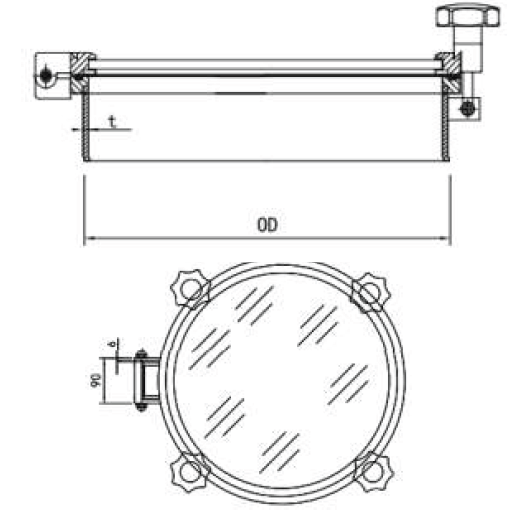

| Size | t (mm) | H (mm) | t1 (mm) | Handwheel Qty. |
|---|
| 300 | 3 | 100 | 8 | 4 |
| 350 | 3 | 100 | 8 | 4 |
| 400 | 3 | 100 | 8 | 5 |
| 450 | 3 | 100 | 8 | 6 |
| 350 | 3 | 100 | 10 | 8 |
| 400 | 4 | 100 | 12 | 10 |
Applications: Process tanks, storage tanks, mixing vessels, and other industrial equipment requiring visual monitoring and convenient tank access.
